Základné dosky radu ASUS PRIME sú odborne navrhnuté tak, aby naplno využili potenciál najnovších procesorov Intel® Core™ Ultra (séria 2).

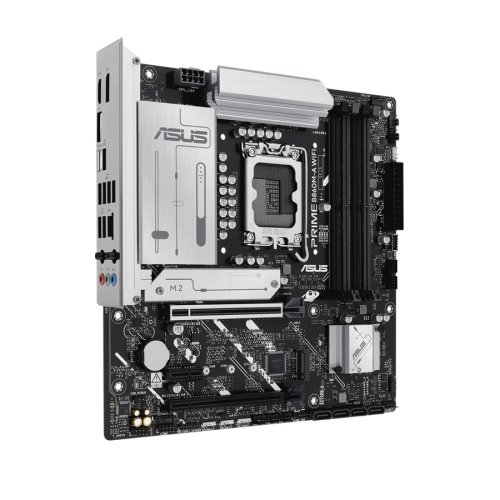

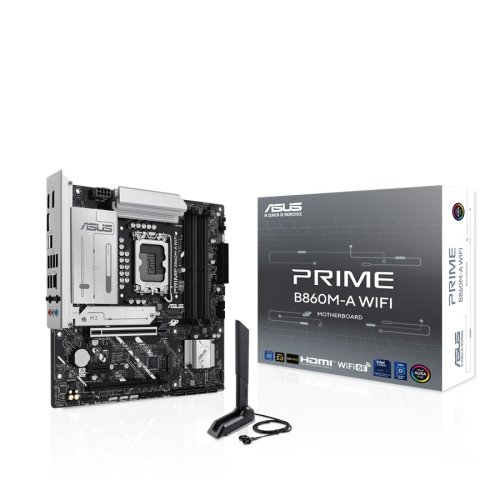

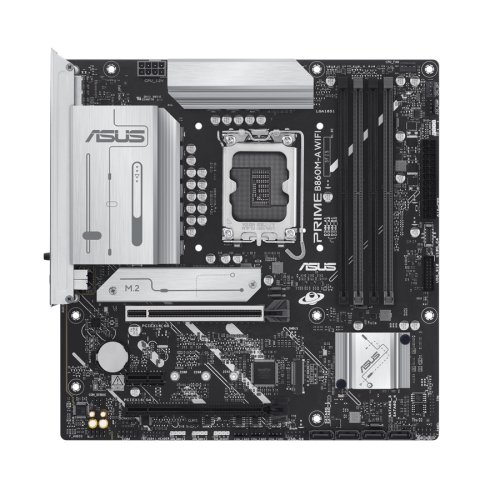

Základná doska PRIME B860M-A WIFI, ktorá sa môže pochváliť robustným dizajnom napájania, komplexnými riešeniami chladenia a inteligentnými možnosťami ladenia, poskytuje používateľom a výrobcom počítačov svojpomocne rad optimalizácií výkonu prostredníctvom intuitívnych funkcií softvéru a firmvéru. Je navrhnutý tak, aby bol pripravený na počítač s pokročilou AI a ponúkal výkon a konektivitu potrebnú pre náročné aplikácie AI.

Špecifikácia:

CPU
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

  Chipset
  Intel® B860 Chipset

  Memory
  4 x DIMM slots, max. 192GB, DDR5
  Supports up to 8400+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*"
  Dual channel memory architecture
  DIMM Fit
  Supports Intel® Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile III(AEMPIII)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

• Adjustments will be made based on the specifications of mass-produced memory products available on the market.

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  2 x DisplayPort**
  1 x HDMI™ port***

• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  ***** VGA resolution support depends on processors' or graphic cards' resolution.
  ***While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

  Expansion Slots
  Intel® Core™ Ultra Processors(series 2)
  1 x PCIe 5.0 x16 slot
  Intel® B860 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  1 x PCIe 4.0 x1 slot


• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

  Storage
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel® Core™ Ultra Processors (Series 2) *
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  Intel® B860 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
  4 x SATA 6Gb/s ports


• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

  Ethernet
  1 x Realtek 2.5Gb Ethernet
  ASUS LANGuard

  Wireless & Bluetooth®
  Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth® v5.3**

• WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
  ** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

  USB
  Rear USB (Total 8 ports)
  1 x USB 20Gbps port (1 x USB Type-C®)
  1 x USB 10Gbps port (1 x Type-A )
  2 x USB 5Gbps ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)**
  Front USB (Total 5 ports)
  1 x USB 10Gbps connector (supports USB Type-C® )
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  1 x USB 2.0 header supports 2 additional USB 2.0 ports

• USB Type-C® power delivery output: max. 5V/3A
  ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

  Audio
  "Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-Bit/192 kHz playback"
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers
  ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

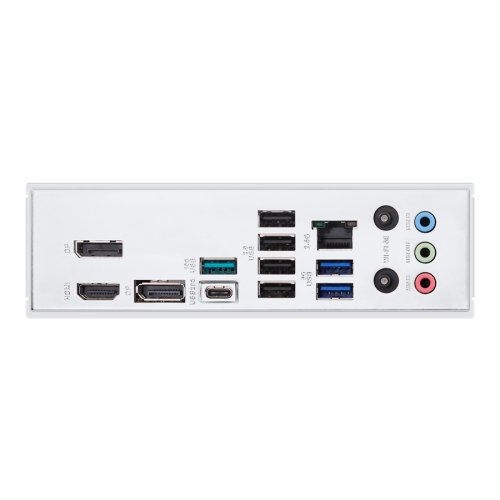

  Back Panel I/O Ports
  1 x USB 20Gbps port (1 x USB Type-C®)
  1 x USB 10Gbps port (1 x Type-A)
  2 x USB 5Gbps ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A )
  2 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks

  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  3 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V CPU Power connector
  Storage Related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 10Gbps connector (supports USB Type-C® )
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  1 x USB 2.0 header supports 2 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1 pin)
  1 x 10-1 pin Front System Panel header
  1 x Thunderbolt™ (USB4®) header

  Special Features
  ASUS 5X PROTECTION III

• DIGI+ VRM (- Digital power design with DrMOS)

• ESD Guards

• LANGuard

• Overvoltage protection

• Stainless-steel back I/O
  ASUS Q-Design

• Q-Antenna

• Q-Dashboard

• Q-DIMM

• Q-LED Core

• Q-Slot
  ASUS Thermal Solution

• M.2 heatsink

• VRM heatsink design
  ASUS EZ DIY

• ProCool

• Pre-mounted I/O shield
  Aura Sync

• Aura RGB header

• Addressable Gen2 headers

  Software Features
  ASUS Exclusive Software
  Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 2+

• Power Saving
  ASUS DriverHub
  ASUS GlideX
  ASUS CPU-Z
  Norton 360 for Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey

  BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
  Manageability WOL by PME, PXE

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x M.2 rubber package
  1 x Screw package for M.2 SSD
  Documentation
  1 x Quick start guide

  Operating System
  Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

  Form Factor
  micro-ATX Form Factor
  9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
