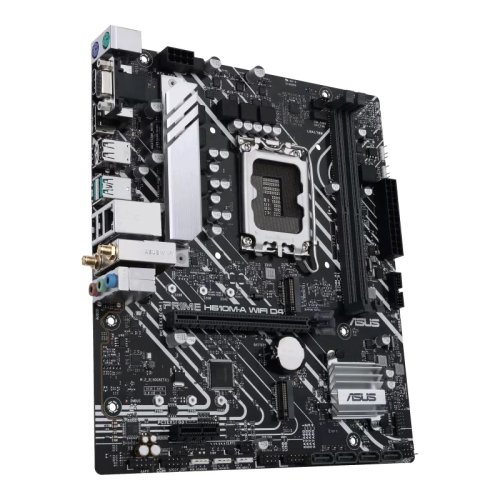

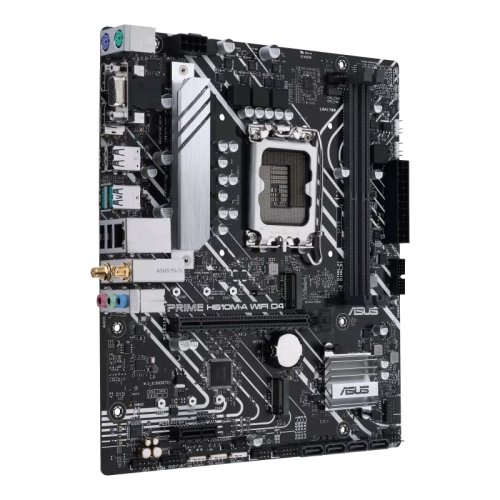

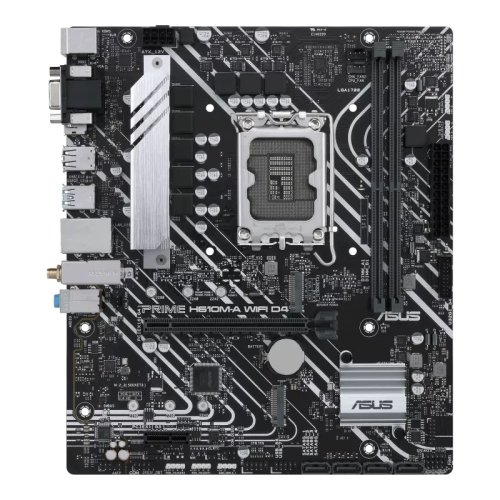

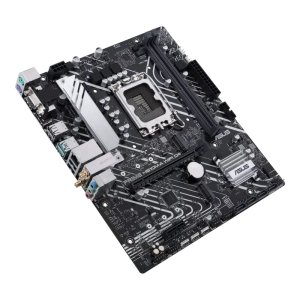

Základná doska Intel® H610 (LGA 1700) mic-ATX s DDR4, PCIe 4.0, duálne sloty M.2, Intel® 1 Gb Ethernet, WIFI 5, DisplayPort, HDMI®, D-Sub, porty USB 3.2 Gen 2, SATA 6 Gbps , adresovateľné hlavičky Gen 2 a Arua Sync
Patica Intel® LGA 1700: Pripravená pre procesory Intel® 13. a 12. generácie
Komplexné chladenie: chladič VRM, chladič PCH a Fan Xpert 2+
Ultrarýchle pripojenie: 32Gbps M.2 slot, Intel® 1 Gb Ethernet, WIFI 5 a porty USB 3.2 Gen 2
Aura Sync RGB: Integrované adresovateľné hlavičky Gen 2 pre RGB LED pásiky, ktoré sa ľahko synchronizujú s hardvérom s podporou Aura Sync

CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel® H610 Chipset

  Memory
  2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

  Graphics
  1 x DisplayPort*
  1 x D-Sub port
  1 x HDMI® port***

• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.

  Expansion Slots
  Intel® 13th & 12th Gen Processors
  1 x PCIe 4.0 x16 slot
  Intel® H610 Chipset
  1 x PCIe 3.0 x1 slot

  Storage
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  Intel® H610 Chipset
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
  4 x SATA 6Gb/s ports

  Ethernet
  1 x Intel® 1Gb Ethernet
  Wireless & Bluetooth
  Wi-Fi 5
  Wi-Fi 5 (802.11 a/b/g/n/ac)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.0

  USB
  Rear USB (Total 6 ports)
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)

  Front USB (Total 5 ports)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 3 USB 2.0 ports

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-Bit/192 kHz playback
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

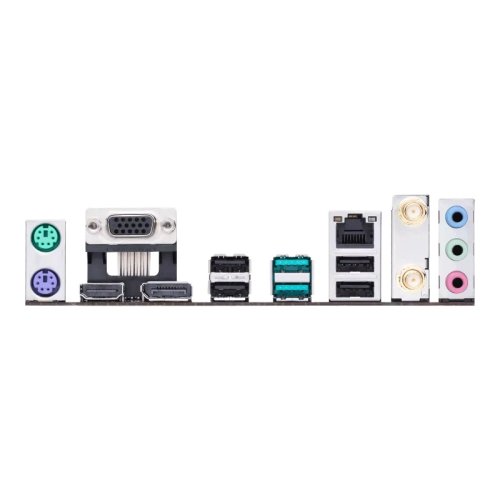

  Back Panel I/O Ports
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMI® port
  1 x D-Sub port
  1 x Wi-Fi Module
  1 x Intel® 1Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard (purple) port
  1 x PS/2 Mouse (green) port

  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  2 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 3 USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  2 x AURA RGB headers
  1 x Clear CMOS header
  1 x Front Panel Audio header (AAFP)
  1 x COM Port header
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header

  Special Features
  ASUS 5X PROTECTION III


• DIGI+ VRM

• LANGuard

• Overvoltage Protection

• SafeSlot Core

• Stainless-Steel Back I/O
  ASUS Q-Design

• Q-DIMM

• Q-Slot
  ASUS Thermal Solution

• VRM heatsink design
  AURA Sync

• AURA RGB headers

• Addressable Gen 2 headers
  Software Features

  ASUS Exclusive Software
  Armoury Crate

• AURA Creator

• AURA Sync

• Fan Xpert 2+
  AI Suite 3

• Performance And Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  ASUS CPU-Z
  MyASUS
  Norton Anti-virus software (Free Trial version)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

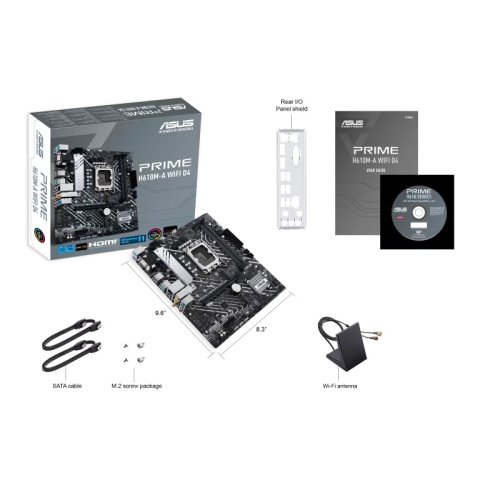

  Accessories
  Cables
  2 x SATA 6Gb/s cables

  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x I/O Shield
  1 x M.2 SSD screw package

  Installation Media
  1 x Support DVD

  Documentation
  1 x User guide

  Operating System
  Windows® 11 64-bit, Windows® 10 64-bit

  Form Factor
  mATX Form Factor
  9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
