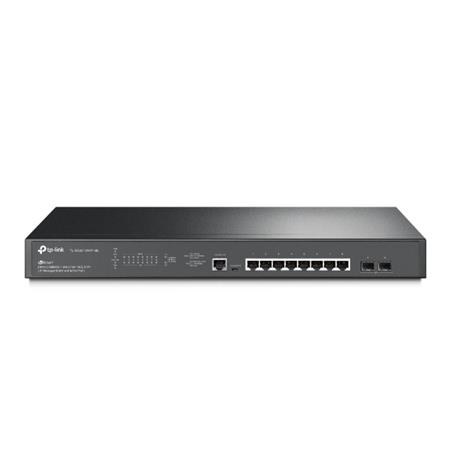

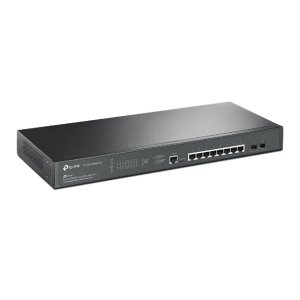

JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

2.5G PoE+ Ports for WiFi 6: 8× 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs.
10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
240 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 240 W*.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

HARDWARE FEATURES
Interface • 8× 100/1000/2500 Mbps RJ45 Ports
• 2× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity 2
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 17.24 W (110V/60Hz) (no PD connected)
291.49 W (110V/60Hz) (with 240 W PD connected)
Max Heat Dissipation 58.82 BTU/h (110 V/60 Hz) (no PD connected)
994.56 BTU/h (110 V/60 Hz) (with 240 W PD connected)


PERFORMANCE
Switching Capacity 80 Gbps
Packet Forwarding Rate 59.52 Mpps
MAC Address Table 16 K
Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling

• SP (Strict Priority)

• WRR (Weighted Round Robin)

• SP+WRR
  • Bandwidth Control

• Port/Flow based Rating Limiting
  • Smoother Performance
  • Action for Flows

• Mirror (to supported interface)

• Redirect (to supported interface)

• Rate Limit

• QoS Remark

  L2 and L2+ Features • Link Aggregation

• static link aggregation

• 802.3ad LACP

• Up to 8 aggregation groups, containing 8 ports per group
  • Spanning Tree Protocol

• 802.1d STP

• 802.1w RSTP

• 802.1s MSTP

• STP Security: TC Protect, BPDU Filter, Root Protect
  • Loopback Detection

• Port based

• VLAN based
  • Flow Control

• 802.3x Flow Control

• HOL Blocking Prevention
  • Mirroring

• Port Mirroring

• CPU Mirroring

• One-to-One

• Many-to-One

• Tx/Rx/Both

  L2 Multicast • IGMP Snooping

• IGMP v1/v2/v3 Snooping

• Fast Leave

• IGMP Snooping Querier

• IGMP Authentication
  • IGMP Authentication
  • MLD Snooping

• MLD v1/v2 Snooping

• Fast Leave

• MLD Snooping Querier

• Static Group Config

• Limited IP Multicast
  • MVR
  • Multicast Filtering: 256 profiles and 16 entries per profile

  VLAN • VLAN Group

• Max 4K VLAN Groups
  • 802.1Q Tagged VLAN
  • MAC VLAN: 7 Entries
  • Protocol VLAN: Protocol Template 16, Protocol VLAN 16
  • Private VLAN
  • GVRP
  • VLAN VPN (QinQ)

• Port-Based QinQ

• Selective QinQ
  • Voice VLAN

  Access Control List • Time-based ACL
  • MAC ACL

• Source MAC

• Destination MAC

• VLAN ID

• User Priority

• Ether Type
  • IP ACL
  -Source IP

• Destination IP

• Fragment

• IP Protocol

• TCP Flag

• TCP/UDP Port

• DSCP/IP TOS

• User Priority
  • Combined ACL
  • Packet Content ACL
  • IPv6 ACL
  • Policy

• Mirroring

• Redirect

• Rate Limit

• QoS Remark
  • ACL apply to Port/VLAN

  Security • IP-MAC-Port Binding

• 512 Entries

• DHCP Snooping

• ARP Inspection

• IPv4 Source Guard: 100 Entries
  • IPv6-MAC-Port Binding

• 512 Entries

• DHCPv6 Snooping

• ND Detection

• IPv6 Source Guard: 100 Entries
  • DoS Defend
  • Static/Dynamic Port Security

• Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control

• kbps/ratio control mode
  • 802.1X

• Port base authentication

• Mac base authentication

• VLAN Assignment

• MAB

• Guest VLAN

• Support Radius authentication andaccountability
  • AAA (including TACACS+)
  • Port Isolation
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  • IP/Port/MAC based access control

  IPv6 • IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 ACL
  • IPv6 Interface
  • Static IPv6 Routing
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP) version 6
  • TCPv6/UDPv6
  • IPv6 applications

• DHCPv6 Client

• Ping6

• Tracert6

• Telnet (v6)

• IPv6 SNMP

• IPv6 SSH

• IPv6 SSL

• Http/Https

• IPv6 TFTP

  L3 Features • 16 IPv4/IPv6 Interfaces
  • Static Routing

• 48 static routes
  • Static ARP

• 128 Static Entries
  • Proxy ARP
  • Gratuitous ARP
  • DHCP Server
  • DHCP Relay

• DHCP Interface Relay

• DHCP VLAN Relay
  • DHCP L2 Relay

  Management • Web-based GUI
  • Command Line Interface (CLI) through the console port, telnet
  • SNMP v1/v2c/v3

• Trap/Inform

• RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • Password Recovery
  • SNTP
  • System Log

  Advanced Features • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
  • Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
  • ZTP (Zero-Touch Provisioning)**

  MIBs • MIB II (RFC1213)
  • Interface MIB (RFC2233)
  • Ethernet Interface MIB (RFC1643)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • RMON MIB (RFC2819)
  • RMON2 MIB (RFC2021)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-Link private MIB

  OTHERS

  Certification CE, FCC, RoHS

  Package Contents •TL-SG3210XHP-M2 Switch
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet

  Environment • Operating Temperature: 0–45 ? (32–113 ?);
  • Storage Temperature: -40–70 ? (-40–158 ?)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
