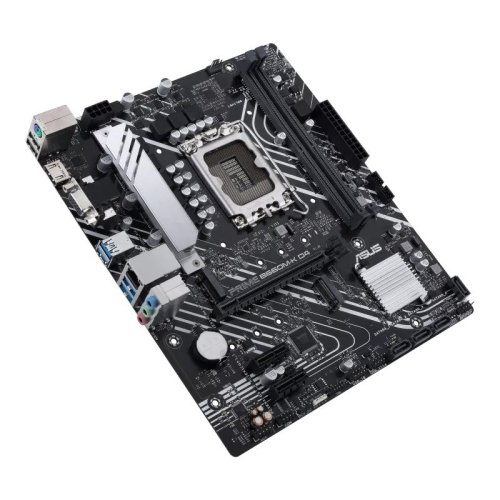

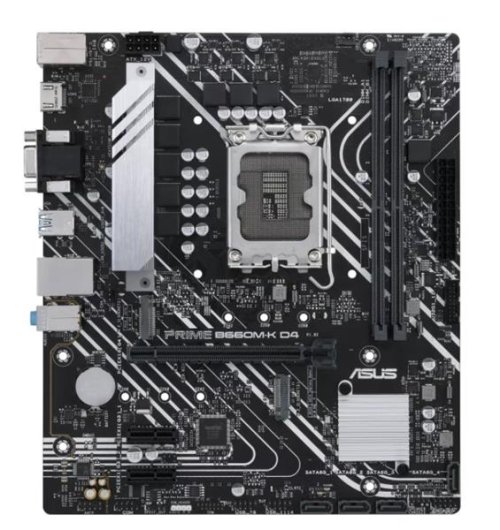

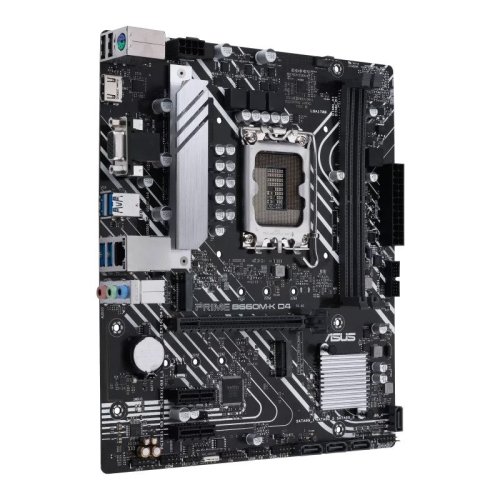

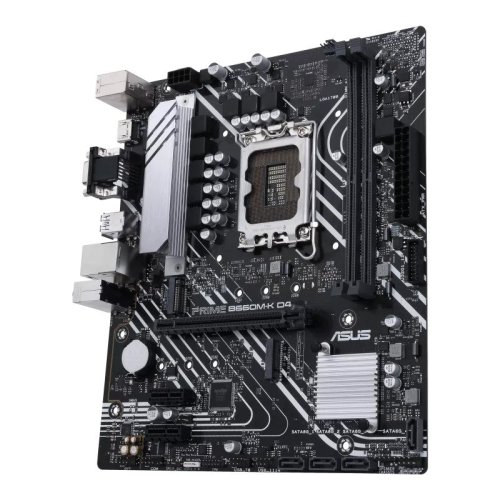

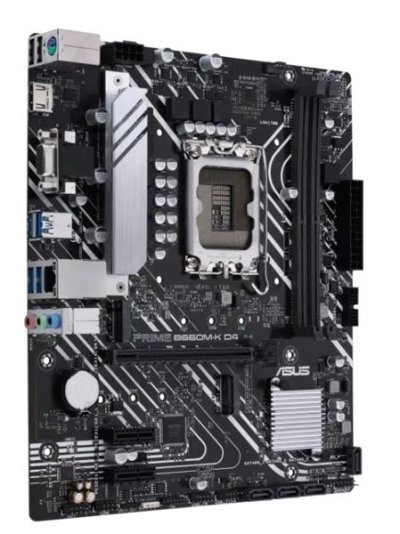

Základná doska Intel® B660 (LGA 1700) mATX s PCIe® 4.0, dva sloty M.2, DDR4, HDMI®, D-Sub, Realtek 1Gb Ethernet, predné USB 3.2 Gen 1, ASUS Lighting Control
Patica Intel® LGA 1700: Pripravená pre procesory Intel® 12. a 13. generácie
Vylepšené riešenie napájania: 8-kolíkový konektor ProCool, zliatinové tlmivky a odolné kondenzátory pre stabilnú dodávku energie
Komplexné chladenie: chladič VRM, chladič PCH, hybridné hlavičky ventilátorov a Fan Xpert
Ultrarýchle pripojenie: PCIe® 4.0, dva sloty M.2 a predný USB 3.2 Gen 1

Technická špecifikácia


CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Intel® Socket LGA1700 for 13th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

  Memory
  2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)

• Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

  Graphics
  1 x D-Sub port
  1 x HDMI® port**

• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Support 4K@60Hz as specified in HDMI® 2.1.

  Expansion Slots
  Intel® 12th Gen Processors
  1 x PCIe 4.0/3.0 x16 slot

  Intel® B660 Chipset
  2 x PCIe 3.0 x1 slots

  Storage
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel® 12th Gen Processors
  M.2_1 slot (Key M), type 2242/2260/2280


• Intel® 12th Gen processors support PCIe 4.0 x4 mode.

  Intel®B660 Chipset**
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
  4 x SATA 6Gb/s ports


• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
  ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

  Ethernet
  1 x Realtek 1Gb Ethernet

  USB
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-Bit/192 kHz playback"

  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

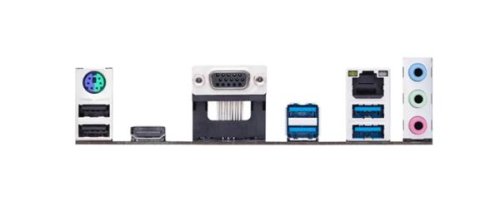

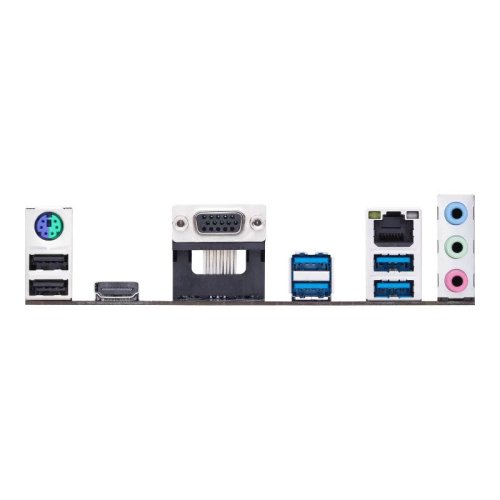

  Back Panel I/O Ports
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x D-Sub port
  1 x HDMI® port
  1 x Realtek 1Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port

  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chassis Fan header
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Miscellaneous
  1 x RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header

  Special Features
  ASUS 5X PROTECTION III


• DIGI+ VRM

• LANGuard

• Overvoltage Protection

• SafeSlot Core

• Stainless-Steel Back I/O
  ASUS Q-Design

• Q-DIMM

• Q-Slot
  ASUS EZ DIY

• ProCool
  ASUS Thermal Solution

• VRM heatsink design
  ASUS Lighting Control
  -RGB header

  Software Features
  ASUS Exclusive Software
  Armoury Crate
  AI Suite 3

• Performance And Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  Fan Xpert
  ASUS CPU-Z
  Norton Anti-virus software (Free Trial version)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS

  Manageability
  WOL by PME, PXE

  Accessories
  Cables
  2x SATA 6Gb/s cables

  Miscellaneous
  1 x I/O Shield
  2 x M.2 anchors

  Installation Media
  1 x Support DVD

  Documentation
  1 x User manual

  Operating System
  Windows® 11 64-bit, Windows® 10 64-bit
  Windows® 11 64-bit, Windows® 10 64-bit

  Form Factor
  microATX
  24.4cm x 21.1cm
