Intel® B760 (LGA 1700) mATX mortheboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Model

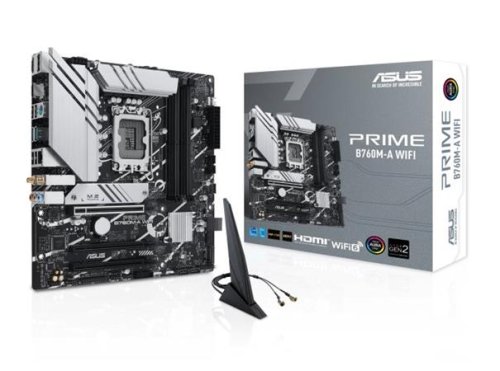

PRIME B760M-A WIFI
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Paměť
4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Grafika
  1 x DisplayPort**
  2 x HDMITM ports***

• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMITM 2.1.
  Rozšiřující sloty
  Intel® 13th & 12th Gen Processors
  1 x PCIe 4.0 x16 slot
  Intel® B760 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  1 x PCIe 4.0 x16 slot (supports x1 mode)
  Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  Úložiště
  Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
  Intel® 13th & 12th Gen Processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel® B760 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports

• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
  Ethernet
  1 x Realtek 2.5Gb Ethernet
  Bezdrátové připojení a Bluetooth
  Wi-Fi 6
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.2

• The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  USB
  Rear USB (Total 6 ports)
  2 x USB 3.2 Gen 2 ports (2 x Type-A )
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 10 ports)
  2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  1 x USB 2.0 header supports 1 additional USB 2.0 port
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-Bit/192 kHz playback
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  Porty na zadním panelu
  2 x USB 3.2 Gen 2 ports (2 x Type-A )
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  2 x HDMITM ports
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port
  Interní konektory
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  2 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  1 x USB 2.0 header supports 1 additional USB 2.0 port
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x LPT header
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1pin)
  1 x 20-3 pin System Panel header with Chassis intrude function
  Speciální funkce
  ASUS 5X PROTECTION III


• DIGI+ VRM

• LANGuard

• Overvoltage Protection

• SafeSlot Core+

• Stainless-Steel Back I/O
  ASUS Q-Design

• Q-DIMM

• Q-LED Core

• Q-Slot
  ASUS Thermal Solution

• M.2 heatsink

• VRM heatsink design
  ASUS EZ DIY

• ProCool
  Aura Sync

• Aura RGB header

• Addressable Gen 2 headers
  Softwarové funkce
  ASUS Exclusive Software
  Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 2+

• Power Saving
  AI Suite 3

• Digi+ VRM

• PC Cleaner
  ASUS CPU-Z
  MyAsus
  Norton Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Správa
  WOL by PME, PXE
  Příslušenství
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x I/O Shield
  1 x M.2 Rubber Package
  1 x Screw package for M.2 SSD
  Documentation
  1 x User guide
  Operační systém
  Windows® 11, Windows® 10 64-bit
  Velikost
  mATX Form Factor
  9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
