Základné dosky radu ASUS PRIME sú odborne navrhnuté tak, aby naplno využili potenciál najnovších procesorov Intel® Core™ Ultra (séria 2).

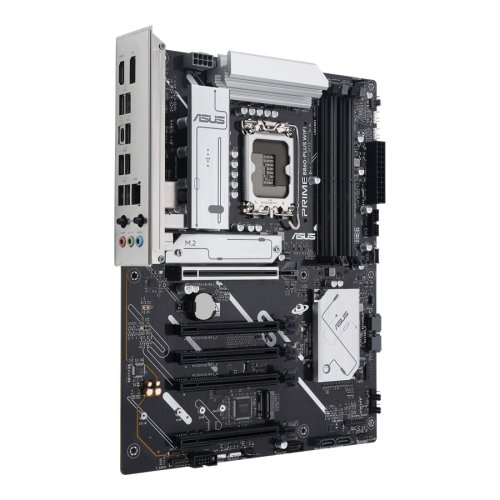

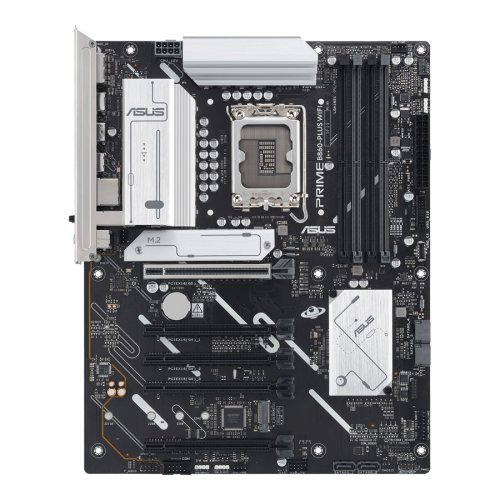

Základná doska PRIME B860-PLUS WIFI, ktorá sa môže pochváliť robustným dizajnom napájania, komplexnými riešeniami chladenia a inteligentnými možnosťami ladenia, poskytuje používateľom a výrobcom počítačov svojpomocne rad optimalizácií výkonu prostredníctvom intuitívnych funkcií softvéru a firmvéru. Je navrhnutý tak, aby bol pripravený na počítač s pokročilou AI a ponúkal výkon a konektivitu potrebnú pre náročné aplikácie AI.

Špecifikácia:

Model
PRIME B860-PLUS WIFI

CPU
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

  Chipset
  Intel® B860 Chipset

  Memory
  4 x DIMM slots, max. 256GB, DDR5
  Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
  Dual channel memory architecture
  DIMM Fit
  Supports Intel® Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile III (AEMP III)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  1 x DisplayPort**
  1 x HDMI™ port***
  1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****

• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  **** Supports max. 4K@120Hz as specified in DisplayPort 1.4.
  ***** VGA resolution support depends on processors' or graphic cards' resolution.
  ****** While installing the operating system, please ensure that your monitor is
  connected to the HDMI port on the back I/O panel or to a discrete graphics card.

  Expansion Slots
  Intel® Core™ Ultra Processors (Series 2)*
  1 x PCIe 5.0 x16 slot (PCIEX16(G5))
  Intel® B860 Chipset
  1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode)
  3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)


• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

  Storage
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel® Core™ Ultra Processors (Series 2)*
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  Intel® B860 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports


• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

  Ethernet
  1 x Realtek 2.5Gb Ethernet
  ASUS LANGuard

  Wireless & Bluetooth
  Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth® v5.3**

• WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
  ** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

  USB
  Rear USB (Total 8 ports)
  1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
  2 x USB 10Gbps ports (2 x Type-A)
  1 x USB 5Gbps port (1 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 5 ports)
  1 x USB 5Gbps connector (1 x USB Type-C®)
  1 x USB 5Gbps header supports additional 2 USB 5Gbps ports
  1 x USB 2.0 header supports 2 additional USB 2.0 ports
  USB Type-C® power delivery output: max. 5V/3A

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-Bit/192 kHz playback
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

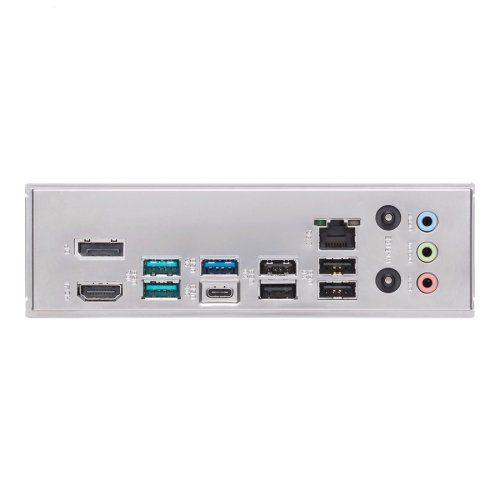

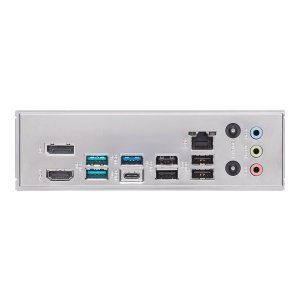

  Back Panel I/O Ports
  1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
  2 x USB 10Gbps ports (2 x Type-A)
  1 x USB 5Gbps port (1 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks

  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V CPU Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 5Gbps connector (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  1 x USB 2.0 header supports 2 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin Front System Panel header
  1 x Thunderbolt™ (USB4®) header

  Special Features
  ASUS 5X PROTECTION III
  -DIGI+ VRM (- Digital power design with DrMOS)


• LANGuard

• Overvoltage Protection

• SafeSlot

• Stainless-steel back I/O
  ASUS Q-Design

• Q-Antenna

• Q-Dashboard

• Q-DIMM

• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• Q-Slot
  ASUS Thermal Solution

• M.2 heatsink

• VRM heatsink design
  ASUS EZ DIY

• ProCool

• Pre-mounted I/O shield
  Aura Sync

• Aura RGB header

• Addressable Gen 2 headers

  Software Features
  ASUS Exclusive Software
  Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 2+

• Power Saving
  ASUS AI Advisor
  ASUS DriverHub
  ASUS GlideX
  ASUS CPU-Z
  Adobe Creative Cloud (Free Trial)
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey

  BIOS
  2 x 128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x M.2 rubber package
  1 x Screw package for M.2 SSD
  Documentation
  1 x Quick start guide

  Operating System
  Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

  Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
