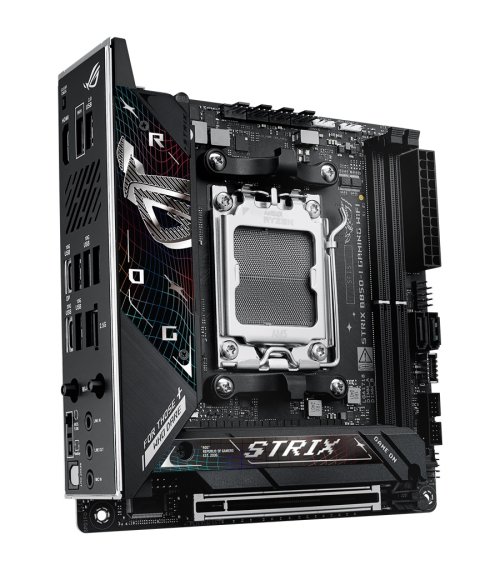

ROG Strix B850-I Gaming WiFi integruje špičkovú technológiu do elegantného mini-ITX formátu.
Obsahuje sloty PCIe® 5.0 pre grafiku a úložisko, dvojkanálové sloty DDR5 a robustné napájanie pre špičkové hry a veľké pracovné zaťaženie.
Pokročilé riešenia chladenia udržujú špičkový výkon a WiFi 7 zaisťuje ultrarýchle pripojenie.
Táto platforma poskytuje výkon a konektivitu, ktoré vyžadujú pokročilé AI PC aplikácie.

Špecifikácia:

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to https://www.asus.com/support/download-center/ for CPU support list.

  Chipset
  AMD B850 Chipset

  Memory
  2 x DIMM slots, max. 96GB, DDR5
  Supports up to 8400+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
  ECC and Non-ECC, Un-buffered DIMM
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  ASUS Enhanced Memory Profile (AEMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
  ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  1 x HDMI™ port***
  1 x USB 10Gbps ports support USB Type-C® display outputs****

• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  ****Supports max. 4K@60Hz as specified in DisplayPort 1.4a
  ***** VGA resolution support depends on processors' or graphic cards' resolution.

  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  1 x PCIe 5.0 x16 slot with Q-Release Slim
  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot with Q-Rlease Slim


• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

  Storage
  Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports

  AMD Ryzen™ 7000 & 9000 Series Desktop Processors
  M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
  M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
  M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*


• Specifications vary by CPU types.

  Ethernet
  1 x Intel® 2.5Gb Ethernet
  ASUS LANGuard

  Wireless & Bluetooth
  Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  Bluetooth® v5.4***

  Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
  For Windows 10, only Wi-Fi 6 is supported.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

  USB
  Rear USB (Total 8 ports)
  1 x USB 20Gbps port(s) (1 x USB Type-C®)
  5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
  2 x USB 2.0 port(s) (2 x Type-A)

  Front USB (Total 5 ports)
  1 x USB 10Gbps
  1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
  1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports
  USB Type-C® power delivery output: max. 5V/3A

  Audio
  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080


• Impedance sense for front and rear headphone outputs

• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

• Supports up to 32-Bit/384 kHz playback on front panel

  Audio Features

• SupremeFX Shielding Technology

• Savitech SV3H712 AMP

• Rear optical S/PDIF out port

• Premium audio capacitors

• Audio cover


• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

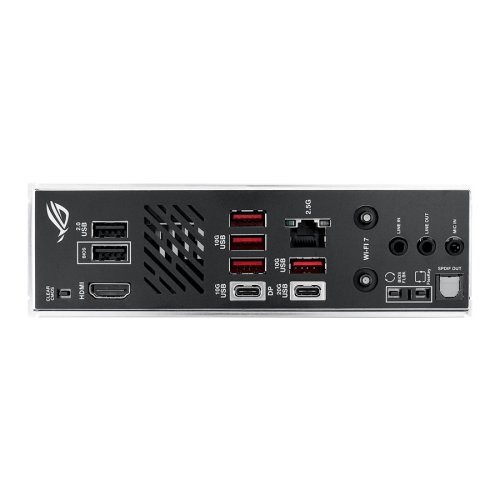

  Back Panel I/O Ports
  1 x USB 20Gbps port(s)
  5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode)
  2 x USB 2.0 port(s) (2 x Type-A)
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Intel® 2.5Gb Ethernet port
  3 x Audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button
  1 x FlexKey button

  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin Extra Flow Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V CPU Power connector
  Storage Related
  2 x M.2 slots (Key M)
  2 x SATA 6Gb/s ports
  USB
  1 x USB 10Gbps connector (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  1 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  2 x Addressable Gen 2 headers
  1 x CPU Over voltage jumper
  1 x Front Panel Audio header (F_AUDIO)
  1 x 10-1 pin Front System Panel header
  1 x Thermal Sensor header

  Special Features
  Extreme Engine Digi+


• 5K Black metallic capacitors
  ASUS Q-Design

• M.2 Q-Latch

• M.2 Q-Slide

• PCIe Slot Q-Release Slim (with PCIe SafeSlot)

• Q-Antenna

• Q-Dashboard

• Q-DIMM

• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• Q-Slot
  ASUS Thermal Solution

• M.2 heatsink backplate

• M.2 heatsink
  ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED

• Clear CMOS button

• ProCool

• Pre-mounted I/O shield

• SafeSlot

• SafeDIMM
  Aura Sync

• Addressable Gen 2 headers

  Software Features
  ROG Exclusive Software

• ROG CPU-Z

• Dolby Atmos
  ASUS Exclusive Software
  Armoury Crate

• AIDA64 Extreme (60 days free trial)

• Aura Creator

• Aura Sync

• Fan Xpert 4

• GameFirst

• HWiNFO

• Power Saving
  ASUS DriverHub
  ASUS GlideX
  TurboV Core
  Adobe Creative Cloud (Free Trial)
  Norton 360 for Gamers (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey

  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x Cable ties package
  1 x M.2 backplate Q-Latch package(s)
  1 x M.2 Q-Slide package
  1 x ROG key chain
  1 x ROG Strix stickers
  1 x M.2 backplate rubber package(s)

  Documentation
  1 x Quick start guide

  Operating System
  Windows 11

  Form Factor
  Mini-ITX Form Factor
  6.7 inch x 6.7 inch (17 cm x 17 cm)
