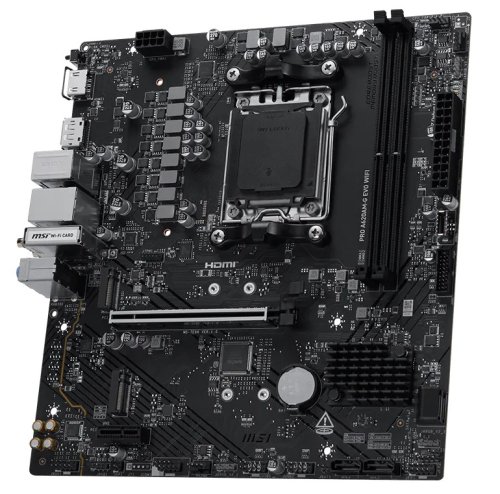

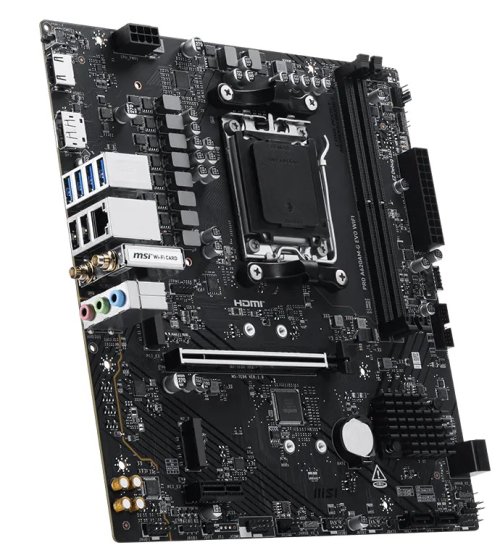

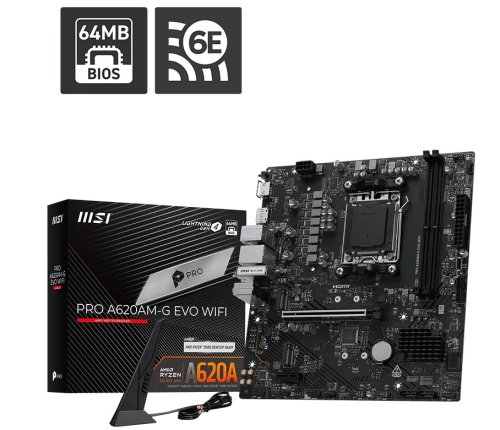

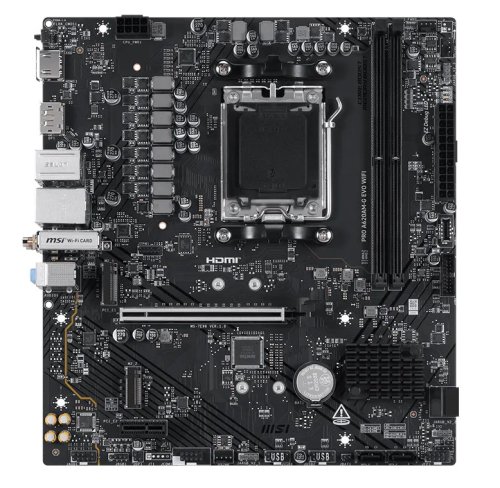

MSI PRO A620AM-G EVO WIFI

Chipset: AMD A620A Rozměrový formát: mATX 226mmx243.84mm Podpora pro procesory: AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Patice procesoru: AM5

Paměť:

*2x DDR5 UDIMM, Maximum Memory Capacity 128GB *Memory Support DDR5 7200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s *Max. overclocking: *1DPC 1R Max speed up to 7200+ MT/s *1DPC 2R Max speed up to 6400+ MT/s *Supports AMD POR Speed and JEDEC Speed *Supports Memory Overclocking and AMD EXPO™ *Supports Dual-Channel mode *Supports non-ECC, un-buffered memory

Grafické porty:

1x HDMI

*Support HDMITM 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

*Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Zvuková karta:

*Realtek® ALC897 Codec *7.1-Channel High Definition Audio

Ethernet: Realtek® RTL8125D 2.5G LAN WLAN + Bluetooth: Wi-Fi 6E

*The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA

Rozšiřující sloty:

*1x PCI-E x16 slot *1x PCI-E x1 slot *PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) *PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

RAID řadič: RAID 0, RAID 1, RAID 10

Úložný prostor:

2x M.2

*M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices *M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

M2_2 slot

*Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) *Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

USB: Zadní USB

*2x USB 2.0 *4x USB 5Gbps Type A

Přední USB

*4x USB 2.0 *2x USB 5Gbps Type A *1x USB 5Gbps Type C

Interní porty:

Napájení

*1× Power Connector (ATX_PWR) *1× Power Connector (CPU_PWR) *1× CPU Fan *2× System Fan

USB

*4× USB 2.0 ports *2× USB 5Gbps Type-A ports *1× USB 5Gbps Type-C port

Ostatní

*2× Front Panel (JFP) *1× Chassis Intrusion (JCI) *1× Front Audio (JAUD) *1× COM Port (JCOM) *3× Addressable V2 RGB LED connectors (JARGB_V2) *1× RGB LED connector (JRGB) *1× TPM pin header (TPM 2.0)

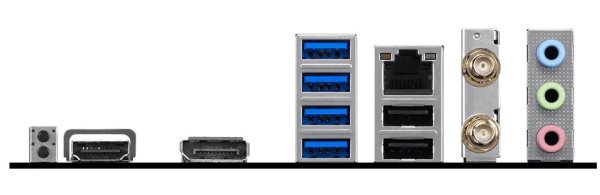

Porty na zadním panelu:

*Clear CMOS Button *HDMI *DisplayPort *USB 5Gbps Type-A *2.5G LAN *Wi-Fi / Bluetooth *Audio connectors *Flash BIOS Button *USB 2.0

OS: Windows 11 64-bit, Windows 10 64-bit
