| Vaše cena | 4 848,60 Kč |
| Vaše cena bez DPH | 4 007,10 Kč |
| Dostupnost | Skladem 2 ks |
| Odesíláme v úterý | |
EAP683 UR
Prístupový bod AX6000 Wi-Fi 6 pre montáž na strop
Až 5952 Mbps WiFi 6 rýchlosti: 1148 Mbps na 2,4 GHz + 4804 Mbps na 5 GHz†
Podporuje technológie WiFi 6, napríklad HE160 (160 MHz šírka kanálu), 1024-QAM atď.
Interné antény 4x4 MU-MIMO v oboch pásmach
Integrácia s platformou Omada SDN pre centralizovanú správu.
Pokročilé funkcie: Omada Mesh, Seamless Roaming a ďalšie.
1x 2,5 Gigabit Ethernet port
Napájanie PoE+: Podporuje 802.3at PoE+ a DC (adaptér nie je súčasťou balenia).

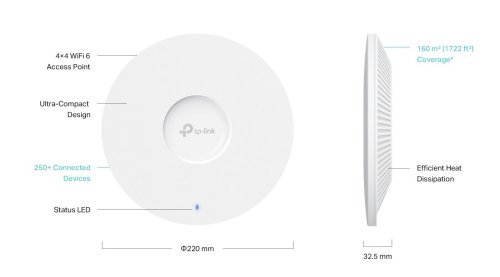

Kompaktný elegantný dizajn (220 mm x 220 mm x 32,5 mm)
HARDWARE FEATURES

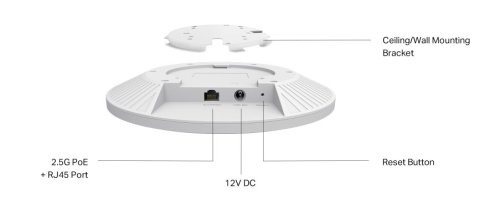

Interface 1× 2.5 Gigabit PoE+ Port
Button Reset
Power Supply • 802.3at PoE
• 12 V / 2 A DC
Note:Power adapter is not included.
Power Consumption • EU: 20.43W
• US: 23.69W
Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi
Bluetooth Yes
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 185?(2000ft2)*
Concurrent Clients 510+
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 1148 Mbps
Wireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE: <20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<28 dBm(5 GHz, band3, EIRP)
• FCC: <26 dBm (2.4 GHz)
<26 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
Certification CE,FCC,RoHS

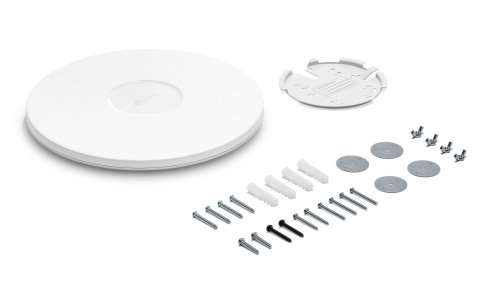

Package Contents • EAP683 UR
• Ceiling/Wall Mounting Kits
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
