Simultanní připojení 450Mbit/s na frekvenci 2.4GHz a 867Mbit/s na frekvenci 5GHz, celková rychlost až 1317Mbit/s
EAP Controller Software umožňuje správcům snadno ovládat stovky EAPů
Kompatibilní se standardem 802.3af, aktivní a nově i pasivní PoE
Kaptivní portál poskytuje pohodlnou metodu pro autorizaci hostů
Band Steering automaticky přesouvá dvoupásmová zařízení do širšího pásma 5GHz pro rychlejší připojení
MU-MIMO umožňuje přístupovým bodům snadný přenos dat s více zařízeními
Beamforming soustřeďuje signál tam, kde ho nejvíce potřebujete a poskytuje tak rychlou a stabilní Wi-Fi
Možnost nastavení automatického restartu přístupových bodů a zapnutí/vypnutí Wi-Fi v předem určeném čase

1317Mbps wireless data rate for uninterrupted wireless connection
Free Controller Software for easy centralized management of hundreds of EAPs
Multiple operating modes including managed AP and standalone AP satisfy different application conditions
Support Power over Ethernet(802.3af) and passive PoE(Adapter Included) for convenient and affordable installation
Simple mounting design makes easy to install on any wall or ceiling surface
Captive portal provides one convenient method of authentication for Wi-Fi guests
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
Airtime Fairness ensures better network performance by giving equal amounts of airtime to each client
Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
Rate limit on per SSID to restrict the bandwidth of each client
Load balance ensures large numbers of users have smooth network experiences in high density business networks
Access Control restricts or only allows the client to access the specified network segment
Multi-SSID divides multiple wireless network for different users
Compatible with 802.11 a/b/g/n/ac products
Support management VLAN for an enhanced network management
Qos function gives video and voice streams higher priority to promote smoother performance for video and voice services

HARDWARE FEATURES

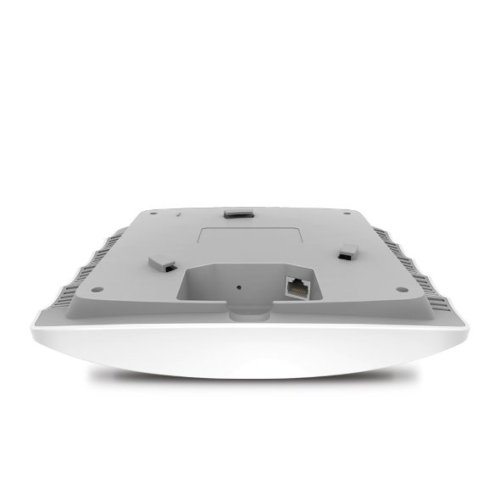

Interface Gigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3af PoE and Passive PoE *)
Button Reset
Power Supply 802.3af PoE and passive PoE *
Power Consumption EU: 10.5 W
US: 12.6W
Dimensions 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)
Antenna Type 3 Internal Omni *
2.4GHz: 4dBi
5GHz: 5dBi
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Yes
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 867Mbps
2.4GHz:Up to 450Mbps *
Wireless Functions Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Band Steering
Load Balance
MU-MIMO *
Airtime Fairness *
Beamforming *
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power CE:
?20dBm(2.4GHz,EIRP)
?23dBm(5GHz,EIRP)
FCC:
?24dBm(2.4GHz)
?22dBm(5GHz)
MANAGEMENT
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS

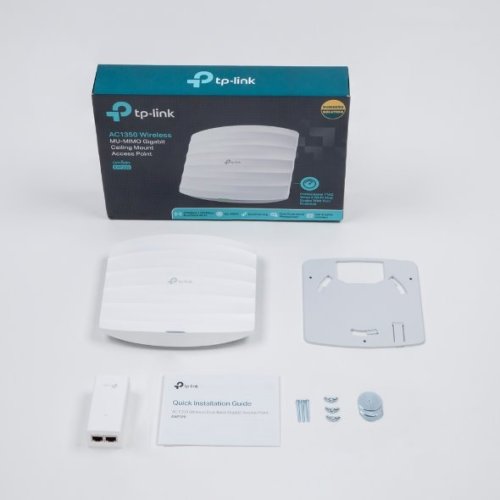

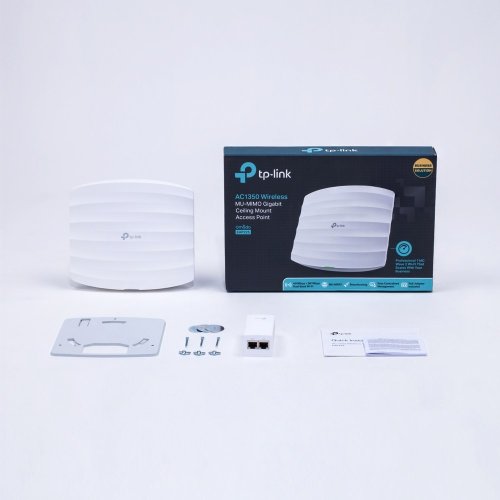

Package Contents AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment Operating Temperature: 0?~60? (32?~144?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
